KOMADA Hydraulic Manual Stacker
KOMADA Hydraulic Manual Stacker
In regards to material handling especially pallets, KOMADA Hydraulic Manual Stacker serving as fully manual stacker in moving pallets from 1 area to another. With its choices of model that with different dimensions offered, effectiveness of the users' business operation will be enhanced and improved in the long run as less time will be needed in moving the pallet.
Specifications :
| Product code | RSD 1025 | RSD 1030 | ||
| Base | ||||
| Capacity | kg | 1000 | 1000 | |
| Load Center (C) | mm | 400 | ||
| Type of lifting | Hand/Foot Pump | |||
| Operating Type | Walkie | |||
| Wheel | ||||
| Material | mm | Nylon | ||
| Qty Steering/Loading wheel | mm | 2/2 | ||
| Wheel Base | mm | 1140 | ||
| Loading Wheel | mm | Ø80 x 60 | ||
| Steering Wheel | mm | Ø180 x 50 | ||
| Dimension | ||||
| Min.fork height | mm | 90 | ||
| Max.fork height (H1) | mm | 2500 | 3000 | |
| Fork Outside width / Inside width | mm | 320-720 / 20-320 | ||
| Fork Length (L1) | mm | 1000 | ||
| Single Fork Size (E) x (S) | mm | 150 x 60 | ||
| Overall Length (A) | mm | 1525 | ||
| Overall Width (B) | mm | 790 | ||
| Overall Height (H) | mm | 1825 | 2085 | |
| Min. turning radius (Wa) | mm | 1400 | ||
| Performance | ||||
| Foot pedal cycles to max (laden) | mm/s | ≤95 | ≤120 | |
| Lowering Speed (laden/unladen) | mm/s | Controlled | ||
*Product colours depends on stock: Red / Yellow

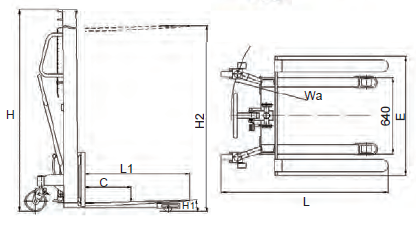

The drawing of Hydraulic Manual Stacker - RSD 1025 , 1030
