Pallet Cages & Pallet Mesh

Pallet Cage

Pallet Cage


Pallet Cage




Specifications:

Product Code PC 1 PC 2 PC 3 PC 4 PC 5 PC 6
Inner Dimension
[H x D x L] (mm)
1400 x 1050 x 1250  1800 x 1050 x 1250  1400 x 1200 x 1200 1800 x 1200 x 1200  1400 x 1300 x 1300 1800 x 1300 x 1300
Outer Dimension
[H x D x L] (mm)
1640 x 1100 x 1350 2040 x 1100 x 1350 1640 x 1250 x 1300 2040 x 1250 x 1300 1640 x 1350 x 1400 2040 x 1350 x 1400
 Loading Capacity  1000 / 1500 kgs
 Post 1.9mm thickness x 50mm x 50mm SHS
 Base 1.6mm thickness x 38x38mm SHS OR 1.6mm thickness x 50x50mm SHS
 Guide Rail  4mm thickness  x  50x50mm Angle Bar
 Front Plate 3mm thickness Metal Shelving Plate
Finishing Glossy Paint
Colour & Decking Material Available Customize
Stackable  Max. 3



Product Code PC 7 PC 8 PC 9 PC 10 PC 11 PC 12

Inner Dimension
[H x D x L] (mm)

1000 x 1150 x 1250 1200 x 1150 x 1250  1000 x 1150 x 1350 1200 x 1150 x 1350 1000 x 1150 x 1450  1200 x 1150 x 1450
Outer Dimension
[H x D x L] (mm)
1240 x 1200 x 1350 1440 x 1200 x 1350 1240 x 1200 x 1450  1440 x 1200 x 1450 1240 x 1200 x 1550 1440 x 1200 x 1550
 Loading Capacity 1000 / 1500 kgs
 Post 1.9mm thickness 50mm x 50mm SHS
 Base 1.6mm thickness 38x38mm SHS OR 1.6mm thickness x 50x50mm SHS
 Guide Rail  4mm thickness x  50x50mm Angle Bar
 Front Plate 3mm thickness Metal Shelving Plate
Finishing Glossy Paint
Colour & Decking Material Available Customize
Stackable  Max. 3

* Size Available Customize

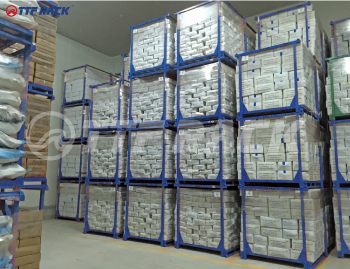

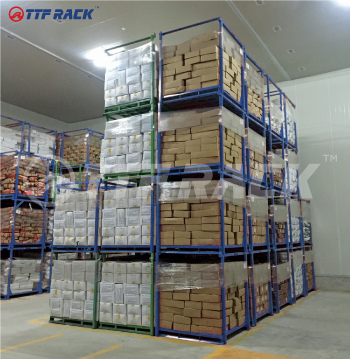

TTF Pallet Cage

TTF Pallet Cage
is specially designed to withstand medium-weight items loading and also for industrial use. As it is being designed to be 'nestable' and 'stackable', it benefits users in space-saving and maximization during use or non-using
