KOMADA Stacker
KOMADA Economic Pro Powered Stacker
KOMADA Economic Pro Powered Stacker
Watch Video Here Tutorial Video
Product Features :
- Easy Operation with a multi-functional handle
- Able to control speed in Fast & Slow mode
- Adjustable Fork Position
- Audible Safety System
- Strong Battery capacity with Dual Battery
- Lead acid battery: 5 hours to be fully charged, & auto cut off when fully charge
Specifications:
| Product Code | CDDYG-E1020 / 1025 / 1030 | CDDYG-E1520/1525 | ||||
| Basic | ||||||
| Capacity | kg | 1000 | 1500 | |||
| Load Center Distances | mm | 450 | ||||
| Lifting Method | Electrics | |||||
| Operating method | Walkie | |||||
| Wheel | ||||||
| Material | PU | |||||
| Qty of driving/steering/bearing wheel | 1x + 1/2 | 1x + 1/4 | ||||
| Size of load bearing wheel | mm | Ø80 x 60 | ||||
| Driving Wheel Size | mm | Ø210 x 75 | ||||
| Steering Wheel Size | mm | 180 x 50 | ||||
|

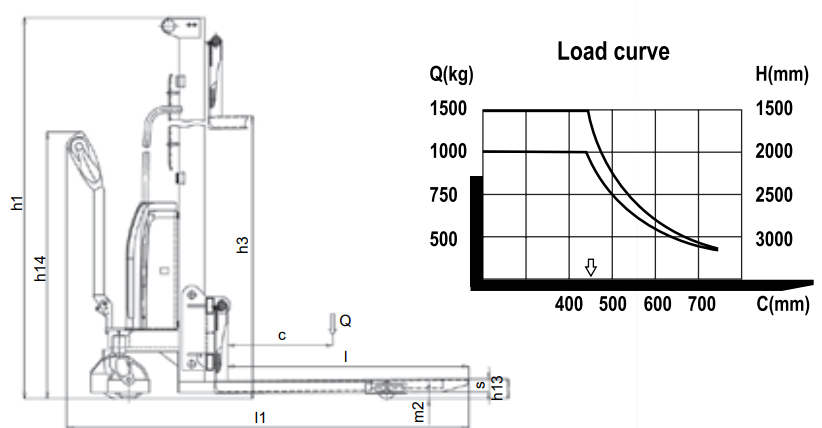

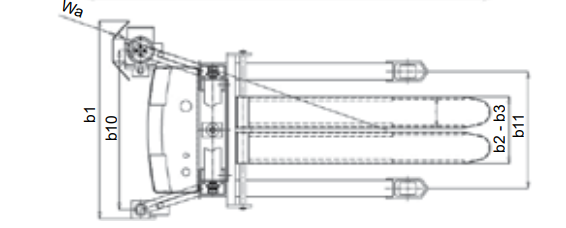

Dimension |
||||||
| Front wheel spacing (b11) | mm | 560 | ||||
| Rear wheel spacing (b10) | mm | 760 | ||||
| Min. fork height from the ground | mm | 90 | ||||
| Max. fork height after lifting | mm | 2000 / 2500 / 3000 | 2000 / 2500 | |||
| Outside fork width (b3) | mm | 320-740 | ||||
| Inside fork width (b2) | mm | 20-440 | ||||
| Single-sided fork dimension (l/e/s) | mm | 1150 x 150 x 60 | ||||
| Overall vehicle length (l1) | mm | 1920 | ||||
| Overall width (b1) | mm | 945 | ||||
| Overall height (h1) | mm | 1580 / 1830 / 2080 | 1630 / 1880 | |||
| Min. turning radius (Wa) | mm | 1480 / 1480 / 1430 | 1430 | |||
| Aisle width, pallet 1000 x 1200 | mm | 2170 | ||||
| Aisle width, pallet 800 x 1200 | mm | 2220 | ||||
|
Performance |
||||||
| Max. travel speed (full / no load) | km/h | 3.5 / 4 | ||||
| Max. lifting speed (full / no load) | mm/s | 105/170 | ||||
| Max. descent speed (full / no load) | mm/s | 180/170 | ||||
| Climbing speed (full / no load) | % | 4 / 6 | ||||
|
Electrical |
||||||
| Drive motor | Kw | 24V0.75 | ||||
| Lift motor | Kw | 24V2.2 | ||||
| Battery capacity | V/Ah | 2x12/80 | ||||
| Charger type | V/Ah | 24/12 | ||||
|
Weight |
||||||
| Battery Weight | kg | 2x18.2±0.5 | ||||
| Net weight | kg | 420 / 425 / 455 425 / 460 | ||||
Non-vibration enhanced standard gantry electric stacker
● Reinforced standard gantry stacker with uniform displacement and no vibration;
● When the handle is in the vertical state, it can also easily control the vehicle to walk, effectively ensuring that the turning can be realized in the narrow channel and the stacking operation can be carried out;
● American CURTIS drive controller, American Gates high-pressure oil pipe and external explosion-proof valve structure. The lifting and lowering are controlled by the flow of multiple manual valves.
● The lifting oil cylinder is designed with a special buffer structure to prevent the gantry from shaking and ensure the safety of cargo lifting;
● The support leg of the door base is made of solid square steel, which makes the structure of the door frame firm and reliable, resistant to impact and deformation;
● When the drive wheel cannot work or needs maintenance, it can be easily removed and replaced as long as the fixing screws are removed
● Reinforced standard gantry stacker with uniform displacement and no vibration;
● When the handle is in the vertical state, it can also easily control the vehicle to walk, effectively ensuring that the turning can be realized in the narrow channel and the stacking operation can be carried out;
● American CURTIS drive controller, American Gates high-pressure oil pipe and external explosion-proof valve structure. The lifting and lowering are controlled by the flow of multiple manual valves.
● The lifting oil cylinder is designed with a special buffer structure to prevent the gantry from shaking and ensure the safety of cargo lifting;
● The support leg of the door base is made of solid square steel, which makes the structure of the door frame firm and reliable, resistant to impact and deformation;
● When the drive wheel cannot work or needs maintenance, it can be easily removed and replaced as long as the fixing screws are removed
