TTF Mould Tool Rack

Company Overview

TTF Marketing Holdings Sdn. Bhd. (407754-H) is a leading Racking Systems & Office Systems pioneer in Malaysia. In order to achieve a world-class standard of quality, we heavily invest in modern types of machinery and the latest sophisticated technology. We provide a full range of products such as Light Duty Racking Systems, Medium Duty Racking Systems, Heavy Duty Racking Systems, Steel Platforms, Mezzanine Floors, Selective Pallet Racking, Gondola Shelving, and Office Systems applicable to all market segments.

Quality Assurance

TTF Marketing Holdings Sdn. Bhd. (407754-H) stresses on using Computer-Aided-Design (CAD) and Computer-Aided-Engineering (CAE) software for design and modelling capacity to ensure accuracy and quality for our clients and customers.TTF also incorporates the Finite Element Analysis (FEA) to determine the factor of safety and deflection of the structure.

Awards

As an endorsement of our product quality and the desire to achieve ISO9001:2000 status, we annually subject our products to a stringent SIRIM QAS compression test. All our racking shelves were subjected to extreme load tests and the highest SIRIM approval ratings. We are proud to say that our products are next to none in the competitive industry of racking systems.

Heavy Duty Racking System

TTF Mould Tool Rack

TTF Heavy Duty Shelving System

TTF Heavy Duty Selective Pallet Racking System

Heavy Duty Shelving Rack with Metal Floor Plain

TTF Mould Tool Rack

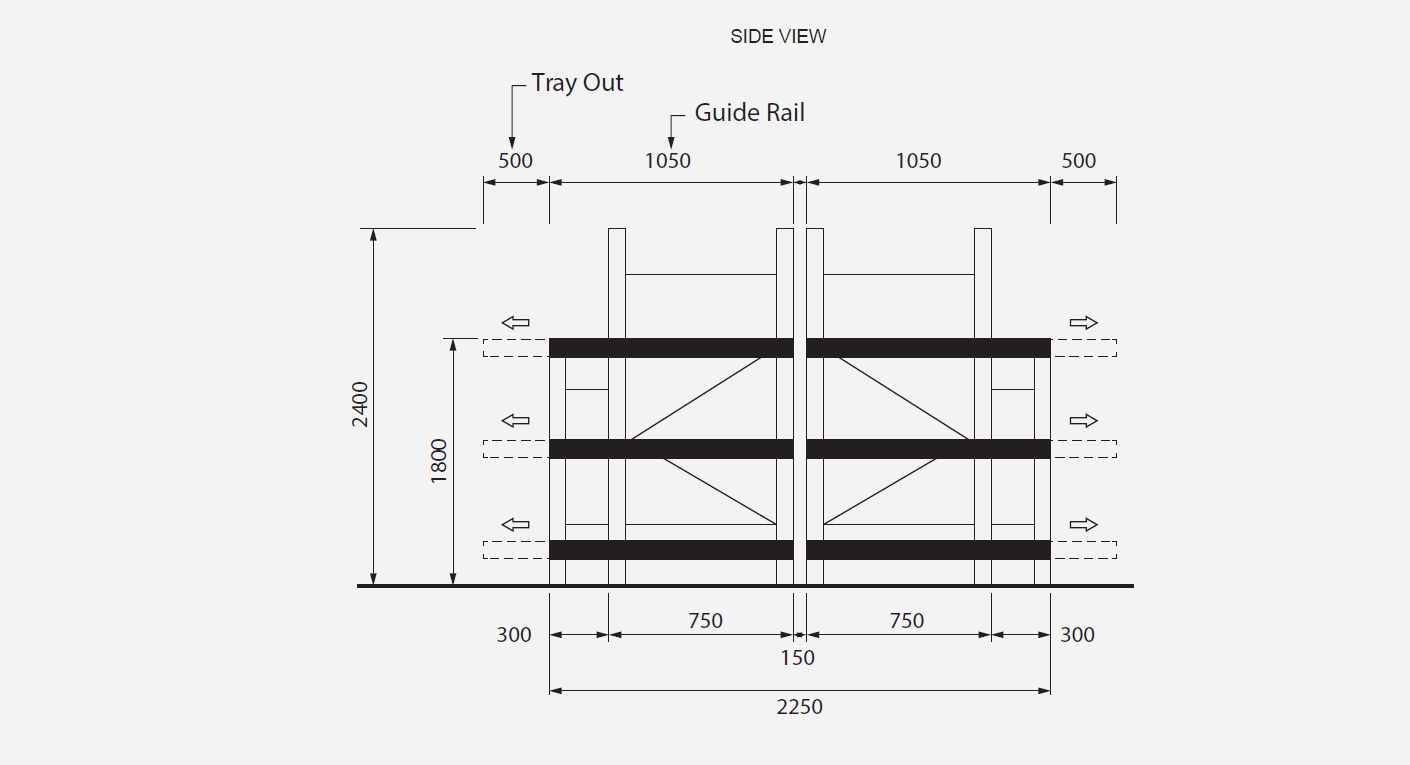

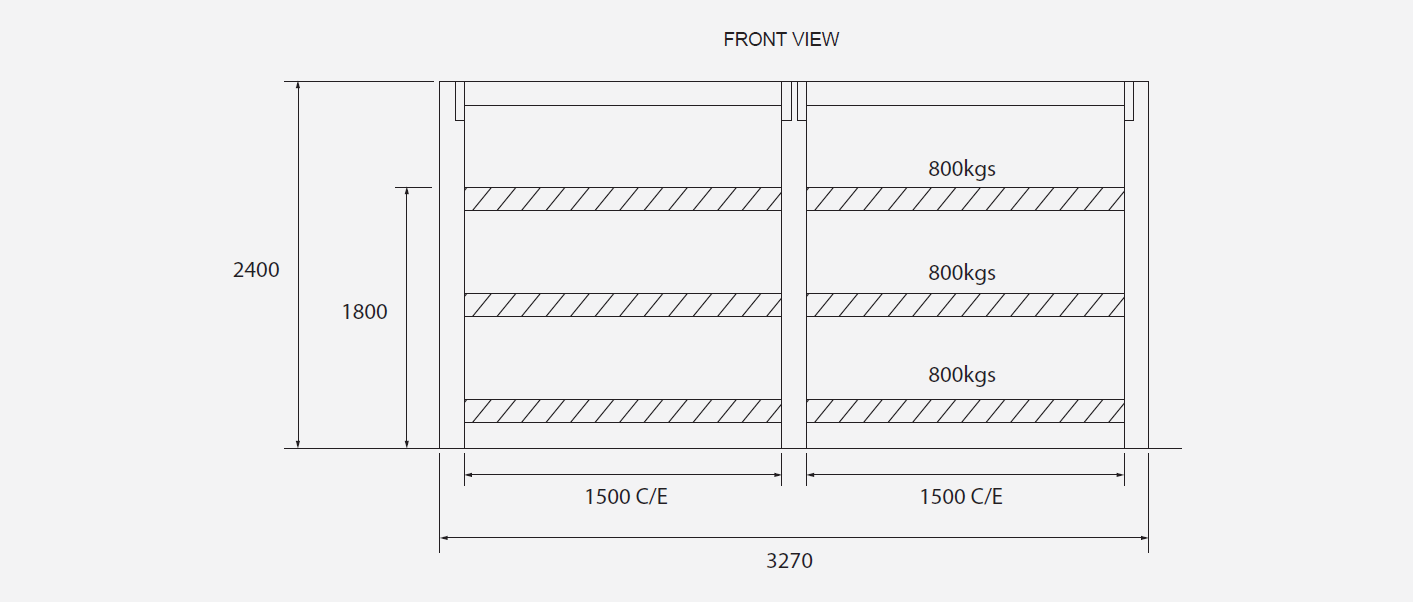

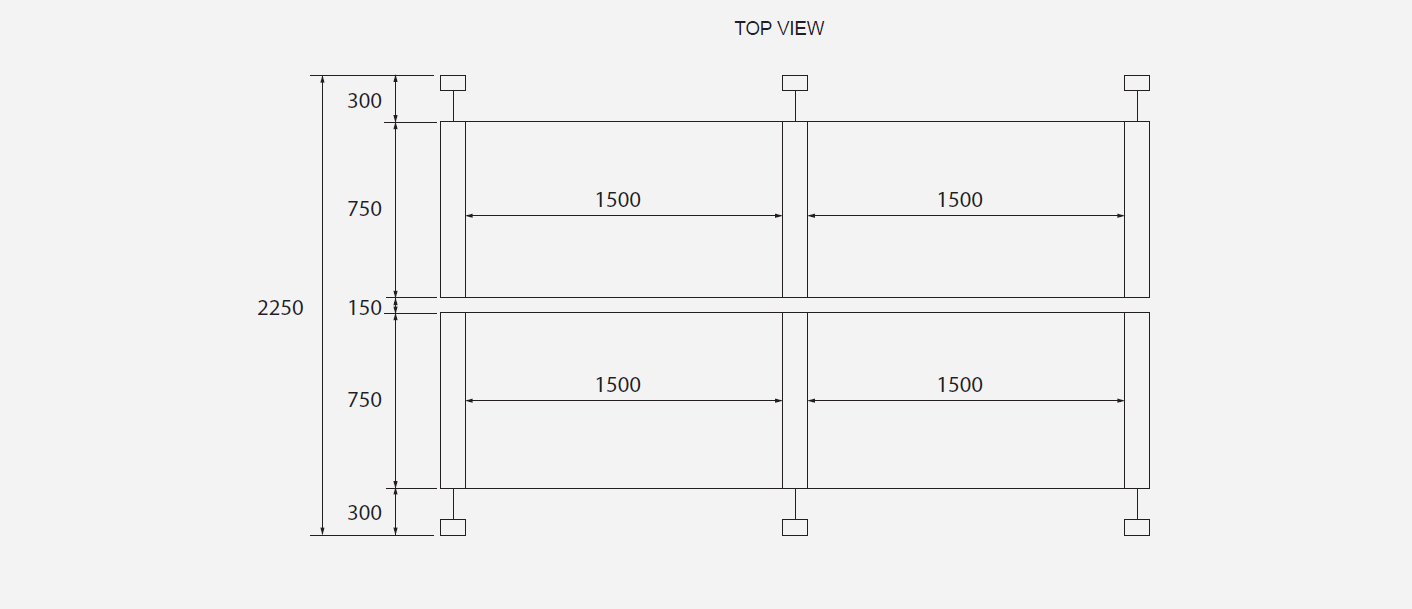

Specifciations :
Dimension : Height x Depth x Length x Shelve Levels

Description
Height (mm)	800 / 2400
Depth (mm)	750 + 300 x 2 unit back to back
Length (mm) C/E	1500
Movable Shelf (mm)	770 x 1490 (3 Movable)
Shelf Level	4
Rack Outer Depth (mm)	2250
Rack Outer Length (mm)	3270
Loading Capacity (kg)	800 kg UDL / Level
Colour	Frame Set : Beam:

*Sizes is available for customize*

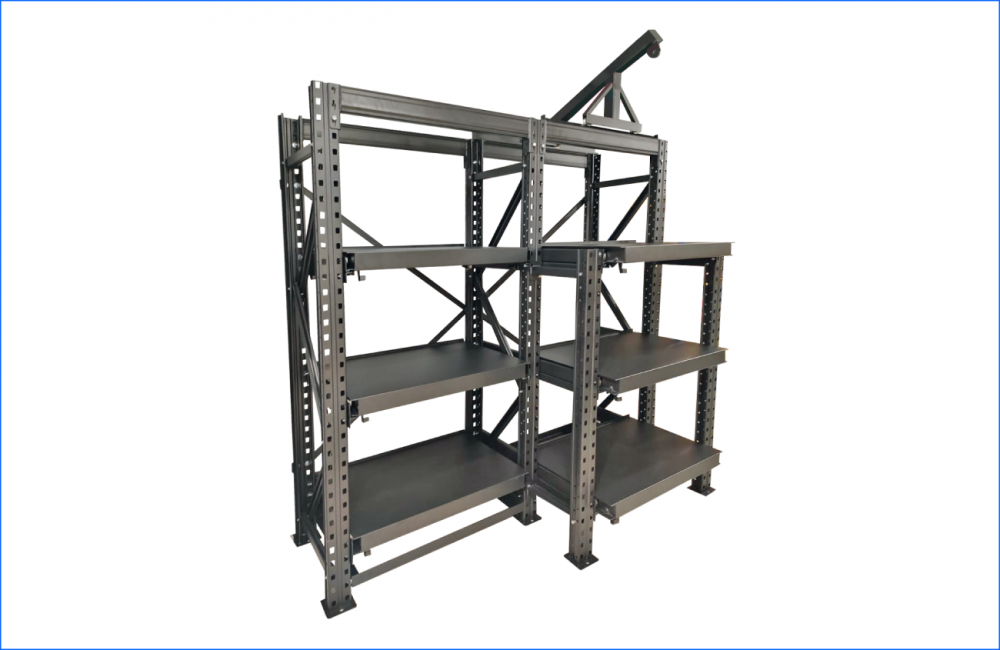

TTF Mould Tool Rack

TTF Mould Tool Rack are perfect for storing heavy duty goods such as modules, motor and tools. The mould tool racks have one-way pullout shelve along with sheet base panel for making the warehousing much simple. Each rack loading capacity is 800kg UDL / level .
