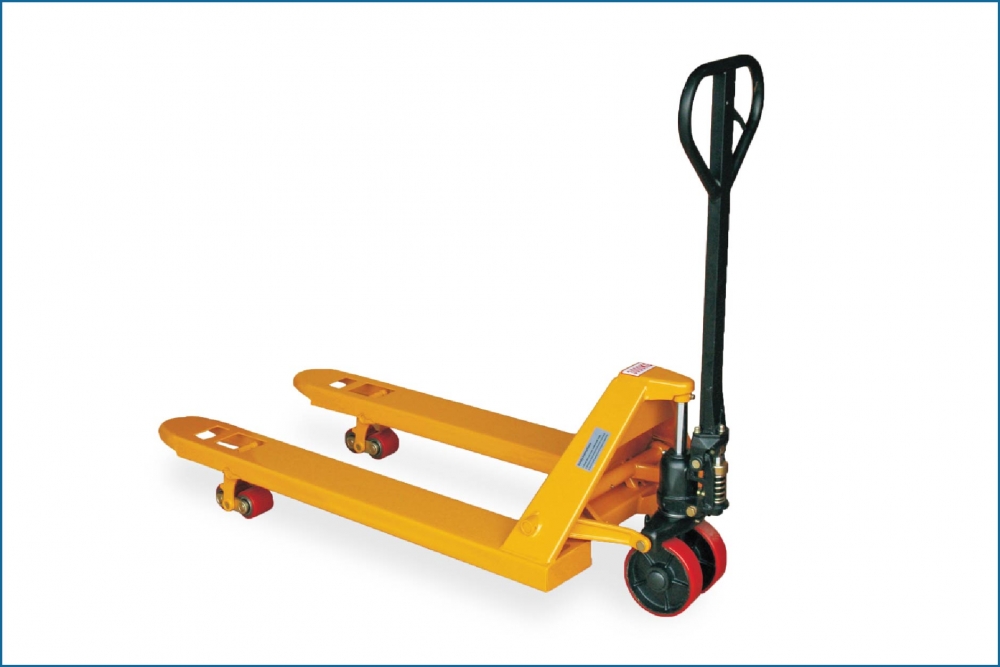

KOMADA Hand Pallet Truck

KOMADA Short Fork Hand Pallet Truck

KOMADA Fully Powered Hand Pallet Truck

KOMADA RZ Series Hand Pallet Truck

KOMADA Low Profile Hand Pallet Truck

KOMADA Long Fork Hand Pallet Truck

KOMADA Four Way Hand Pallet Truck

KOMADA Heavy Duty Hand Pallet Truck

KOMADA Weight Scale Hand Pallet Truck

KOMADA Hot Dipped Galvanize Hand Pallet Truck

KOMADA Stainless Steel Hand Pallet Truck

KOMADA Scissor Lift Pallet Truck

KOMADA Short Fork Hand Pallet Truck

Watch video here

In dealing with pallet handling issue, KOMADA Short Fork Hand Pallet Truck is used to help user in moving pallet from one area to another area within the warehouse. Knowing that there's no identical users' needs or their warehouse structure, short fork pallet truck could served as another alternative to users' that need shorter truck or typically, the aisle of the warehouse are insufficient for normal pallet truck.

Specifications :

Product code		RZ 25SF
Loading Capacity	kg	2500
Min. Fork Height	mm	85
Max. Fork Height	mm	200
Max. lifting height	mm	≥110
Fork ouside width (B)	mm	540
Fork inside Width	mm	220
Fork Length (L)	mm	915
Single Fork size (E) x (S)	mm	160 x 50
Overall Length (L1)	mm	1315-1620
Overall Width	mm	540
Overall Height (H2)	mm	1245
Single Loading Wheel	mm	Ø80 x 93
Steering Wheel	mm	Ø180 x 50
Material of Wheel		PU / Nylon
