KOMADA Hand Pallet Truck

KOMADA NZ Series Hand Pallet Truck

KOMADA NZ Series Hand Pallet Truck

KOMADA NZ Series Hand Pallet Truck

WATCH VIDEO HERE          WATCH VIDEO HERE

KOMADA™ NZ Series Hand Pallet Truck is engineered to handle extreme loads with capacities of 2000KG, 2500KG and 3000KG. Designed for durability and efficiency, this pallet truck is ideal for demanding material handling tasks in warehouses and logistics operations. Alternatively, NZ Series Hand Pallet Truck allows storekeeper to move palletised goods from one to another area easily without hassle.


Key Features:

  • High Load Capacity: Available in 2000KG / 2500KG / 3000KG for handling heavy-duty operations.
  • PU / Nylon Wheels: Durable and smooth-rolling for superior performance on various surfaces.
  • Reinforced Steel Construction: Built for maximum strength and long-lasting reliability.
  • Ergonomic Handle: Minimizes operator fatigue with a comfortable, user-friendly design.
  • Effortless Maneuverability: Despite its heavy-duty build, the NZ Series ensures smooth operation in tight warehouse aisles.
  • Low Maintenance Design: Reduces downtime and operating costs, ensuring uninterrupted operations.

Ideal For:

  • Heavy industrial warehouses
  • Manufacturing facilities
  • Logistics and distribution centers
  • Shipping and receiving docks
  • Operations requiring handling of heavy pallets

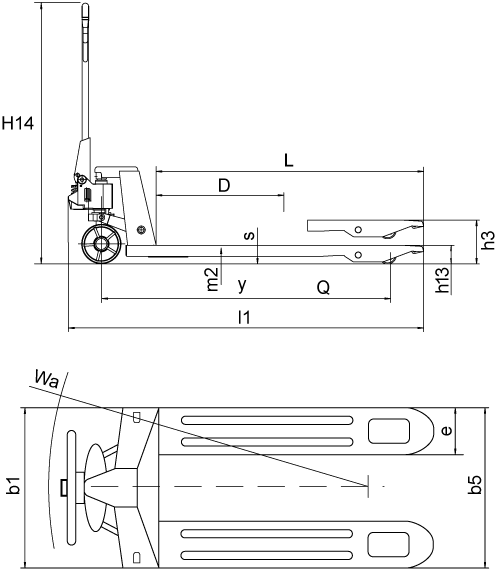

Specifications:

 Product Code NZ25N NZ25 NZ30N NZ30 NZNY20N NZNY20 NZNY25N NZNY25 NZNY30N NZNY30
Capacity kg Q 2500 3000 2000 2500 3000
Standard Load Center Distance mm D 575 610 575 610 610 575 575 610 575 610
Min. Fork Height h13 80
Max. Fork Lifting Height h3 195
Max. Fork Outer Distance b3 550 685 550 685 550 685 550 685 550 685
Fork Length mm l 1150 x 1220
Min. Outside Turning Radius  mm Wa 1340 1410 1340 1410 1340 1410 1340 1410 1340 1410
Weight kg   63 - 69 63 - 69 63 - 69 63 - 69 65 - 71
 Steering Wheel mm   200
Bearing Wheel mm   Ø180 x 50
Tiller Height mm h14 Ø80 x 70
Overall Length mm l1 1230
Overall Width mm b1 550 685 550 685 550 685 550 685 550 685
Wheelbase Center Ground Clearance mm m2 24
Wheelbase mm y 1195 1265 1195 1265 1195 1265 1195 1265 1195 1265
Fork Size mm e * s 152 x 59
Wheel Type PU Nylon

*Product colours depends on the stocks.
