Pallet Shuttle System

S-Series 2 Way Pallet Radio Shuttle

S-Series 2 Way Pallet Radio Shuttle

KOMADA S-Series 2 Way Pallet Radio Shuttle

How it works
The pallet shuttle is an automated storage and retrieval solution that maximizes warehouse density and flexibility.

  • ​Operation: A shuttle lifts and transports unit loads along lanes to the first available position, then returns to the start for the next cycle.
  • ​High Density: Enables deep-lane storage, significantly increasing the number of pallets per lane.
  • ​SKU Flexibility: Unlike Drive-In racking (which requires the same SKU for an entire channel), shuttle systems only require the same SKU within a single lane.
  • ​Versatile Logic: Supports both FIFO (First-In, First-Out) and FILO (First-In, Last-Out) inventory management.

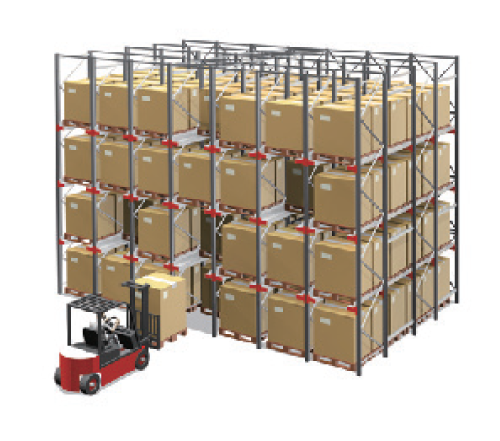

    FILO

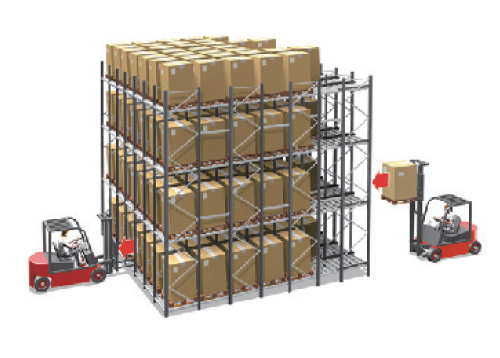

    FIFO




Product Code AXS1200x1000-T1.5 BXS1200x1000-T1.5 DXS1200x1000-T1.5 CXS1200x1200-T2
Basic Specification
Dimension
(W x L x H)		 mm 964 x 1040 x 171 948 x 1040 x 171 948 x 1040 x 147 952 x 1200 x 174
Rail Height mm 140 163 126 163
Weight kg 200 250 230 300
Rated Load kg 1500 1500 1500 2000
Standard Pallet Size
(W x D)		 mm W1200 x D1000
Customizable W1000~1600 x D1000~1600		 W1200 x D1200
Customizable W1200~1600 x D1200~1600
Control Method (Optional) Remote Control / Wi-Fi Option
Operating Temperature (Optional) Standard Temperature Range (-20°C ~ +60°C)
Low Temperature Range (-25°C ~ +0°C)
Performance
Unloaded Travel Speed m/s 1 1 1 0.7
Loaded Travel Speed m/s 0.8 0.8 0.8 0.5
Acceleration m/s2 0.3 0.3 0.3 0.2
Lift Time s 3 3 2.5 3.5
Motor Power W 750W 750W 750W 1200W
Positioning Accurarcy mm ± 3mm ± 3mm ± 3mm ± 3mm
Number of Wheels

4 Wheels
(Polyurethane)

 8 Wheels
(Polyurethane)
Wheel Diameter mm 100mm
Battery
Battery Capacity 48V30, 40, 50AH (Optional)
Working Times 6~8 Hours
Charging Time 2~3 Hours
Battery Type LiFePO4 Battery
Number of Charge / discharge cycles 1500
