KOMADA Hand Pallet Truck

KOMADA Low Profile Hand Pallet Truck

KOMADA Low Profile Hand Pallet Truck


KOMADA Low Profile Hand Pallet Truck


In dealing with pallet handling issue, KOMADA Low Profile Hand Pallet Truck is used to help user in moving pallet from one to another area within the warehouse. Knowing that there are no identical users' needs or their warehouse structure, KOMADA Low Profile Hand Pallet Truck that come with different sizes and loading capacity could serve as alternative towards pallet handling within the warehouse. Besides, 1 very specific feature is that the initial fork height/minimum fork height will be slightly lower than the common pallet truck in order to cater user that utilize lower size pallet.

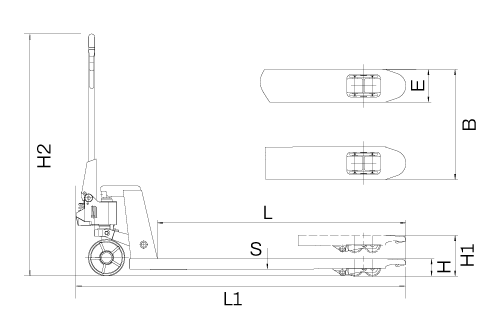

Specifications :

 Product Code RZ 20LPN RZ20LP
 Loading Capacity kg 2000
Min Fork Height (H) mm 52
Max. Fork Height (H1)  mm 140/160 190/200
Max. lifting height  mm 88/95 ≥110
Fork outside width (B) mm  540 685
Fork Inside width  mm 200
 Fork Length (L) mm 1150 1220
Single Fork size (E) x (S)  mm 160 x 37 160 x 50
Overall Length (L1)  mm 1315-1620
Overall width  mm 520
Overall height (h2)  mm  1225 1245
Single Loading Wheel  mm  Ø50 x 93
 Steering Wheel mm Ø160 x 50 Ø180 x 50
Material of wheel  PU / Nylon

*Product colours depends on stock : Red / Yellow
