KOMADA Hand Pallet Truck

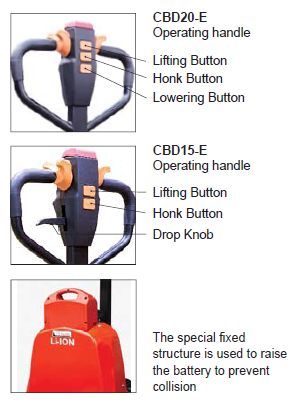

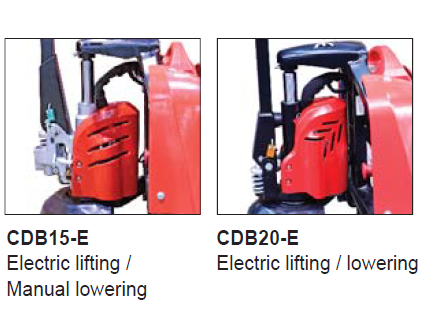

KOMADA Fully Powered Hand Pallet Truck

Specifications :

Product Code		CBD15-E			CBD20-E
Drive Type		Electric
Manner of operation		Tramp type
Load capacity (Q)	kg	1500			2000
Load centre (c)	mm	600
Distance between fork backrest and front (x)	mm	944
Wheel Based (y)	mm	1243
Service weight (without battery)	mm	137			146
Tire material		PU
Driving Wheel	mm	Ø210 x70
Bearing Wheel	mm	Ø80x 60
Qty of wheel, Front / Rear (x=driving wheel)		1x/4
Tread (b11)	mm	535
Lifting height (h3)	mm	200
Height of handle in operation position (h14)	mm	740/1160
Lowered fork height (h13)	mm	85
Overall length (l1)	mm	1603
Body length (l2)	mm	453
Overall width (b1 / b2)	mm	685
Fork size (s/e/l)	mm	50/150/1150
Fork width (b5)	mm	685
Ground clearance under mast (m2)	mm	35
Aisle width for pallets 1000*1200 crossways (Ast)	mm	1804
Aisle width for pallets 1000*1200 lengthways (Ast)	mm	1854
Turning radius	Wa	1398
Driving speed (load/unload)	km/h	4.2/4.5
Maximum gradeability (load/unload)	%	5/10
Brake type		Electromagnetic brake
Drive motor	kW	0.75
Lift motor	kW	0.8
Battery (according to DIN 43531/35/36)		No
Battery voltage / rate capacity	V/Ah	24/20	24/30	24/40	48/15	48/20
Battery weight (±5%)	kg	5.5	7.0	8.2	7.0	8.2
Type of drive control		DC
Noise level	dB(A)	≤70
Steering type		Mechanical
